Decoding Ship Stability: The Relationship KG + GM = KM Explained

Ships are massive, highly complex floating puzzles. To keep them upright and safe, maritime professionals rely on a few unbreakable rules of physics. Fortunately, you do not need a degree in advanced mathematics to understand how a massive steel vessel balances on the water. You only need to understand one basic equation: $KG + GM = KM$.

This short, simple formula is the ultimate golden rule of maritime safety. It explains exactly how a ship maintains its upright posture against the relentless pushing of ocean waves. Every time a cargo ship is loaded with containers, or a cruise ship takes on passengers, this equation is the very first thing the crew checks. Let us explore what these specific letters mean, how they relate to one another, and why this simple addition problem is the absolute lifeline for keeping vessels safe on the open sea.

Breaking Down the Key Points: K, G, and M

Before we look at the math, we must define the three letters inside the formula. To do this, imagine a straight, vertical line running straight down through the very center of a ship, from the sky down to the seabed.

First, we have K, which stands for the Keel. The keel is the absolute bottom spine of the ship. It is the lowest physical point of the steel hull. In naval architecture, we use ‘K’ as our baseline. It acts as the zero-point for all of our height measurements, much like the floor of a house.

Next, we have G, which represents the Center of Gravity. This is the exact mathematical point where all the downward weight of the ship and its cargo is perfectly focused. Gravity pulls straight down through this point. If you load heavy cargo deep in the bottom of the ship, point G moves downward. If you load heavy boxes high on the deck, point G moves upward.

Finally, we have M, which stands for the Metacenter. Think of point M as the invisible pivot point located high up in the ship’s geometry. When a wave pushes the ship to lean to one side, the upward pushing forces of the water intersect at this spot. For a ship to remain safely stable and actively fight against rolling over, point M must always sit higher on the vertical line than point G.

The Formula Explained: Stacking the Blocks

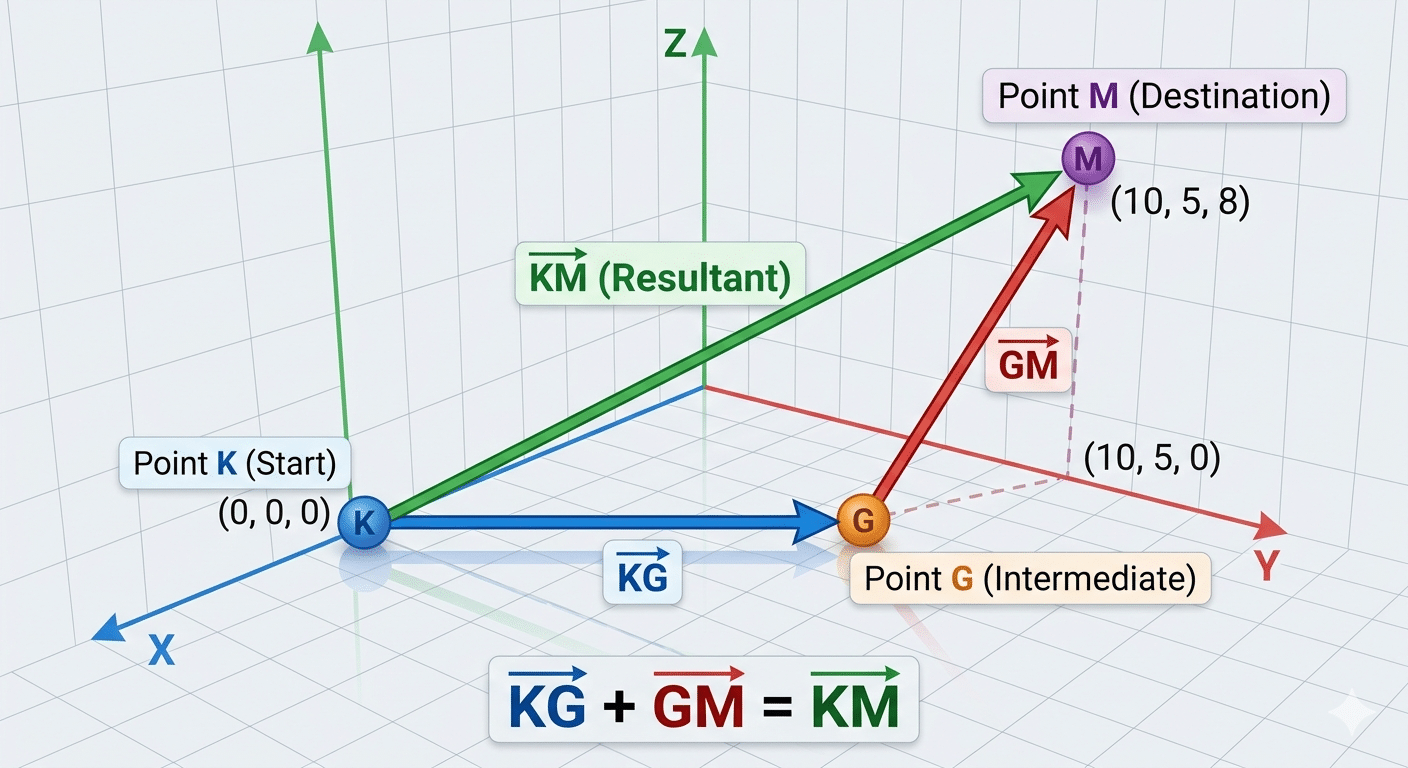

Now that we know the physical points on the ship, the equation representing the relationship $KG + GM = KM$ becomes incredibly easy to visualize. It is simply basic geometry applied to a straight vertical line. Let’s look at the distances between our three points.

KG is the measured vertical distance from the Keel (the bottom) up to the Center of Gravity. It tells us exactly how high the ship’s weight is resting above the ocean floor.

GM is the vertical distance from the Center of Gravity up to the Metacenter. We call this the Metacentric Height. This specific distance acts as the ship’s safety margin. A larger GM means a safer, more stable ship.

KM is the total overall distance from the Keel all the way up to the highest point, the Metacenter.

If you look at our vertical line, point G always sits somewhere in the middle between K and M. Therefore, the distance from K up to G, plus the distance from G up to M, perfectly equals the total distance from K up to M.

You can think of this exactly like stacking two wooden building blocks. If the bottom block (KG) is 6 meters tall, and the top block (GM) is 2 meters tall, the total overall height (KM) is exactly 8 meters. As the cargo’s center of gravity (G) moves up and down that line, the individual sizes of KG and GM will change, but they will always add up to equal the total height of KM.

Why This Simple Math Keeps Ships Safe

You might wonder why we need an equation if it is just a simple vertical line. The reason is incredibly practical: a ship’s crew cannot measure the safety margin (GM) directly with a tape measure. The Metacenter and the Center of Gravity are invisible. The crew has to use this formula to discover if the ship is safe to sail.

Before a vessel leaves the dock, the Chief Officer needs to know their GM. A positive GM means the ship will stay upright. So, how do they find it?

First, the officer finds the total height, KM. They do this by looking at a special manual provided by the ship’s builders. The manual tells them exactly how high the Metacenter is based simply on how deep the ship’s hull is sitting in the water. Next, the officer calculates the KG. They use a highly advanced loading computer that calculates exactly how high the physical cargo’s weight is resting above the keel.

Once the officer has the known KM and the known KG, they simply rearrange our golden formula to find the missing safety piece: $GM = KM – KG$.

If the final GM number is positive and meets the strict safety standards set globally by the International Maritime Organization (IMO), the ship is officially cleared to sail. Respected national authorities like the United States Coast Guard (USCG) strictly inspect these daily mathematics during port visits to ensure that vessels are never loaded dangerously. This simple subtraction problem prevents capsizing disasters worldwide.
