Ship Dynamics Explained: Defining Stiff Versus Tender Ship Characteristics

If you have ever spent time on different types of boats or ships, you might have noticed that no two vessels react to the ocean’s waves in exactly the same way. Some ships aggressively snap back to an upright position the moment a wave hits them, making it incredibly difficult to walk down the hallway without losing your balance. Other ships seem to sway slowly and gently, lingering as they lean before lazily rolling back to the center.

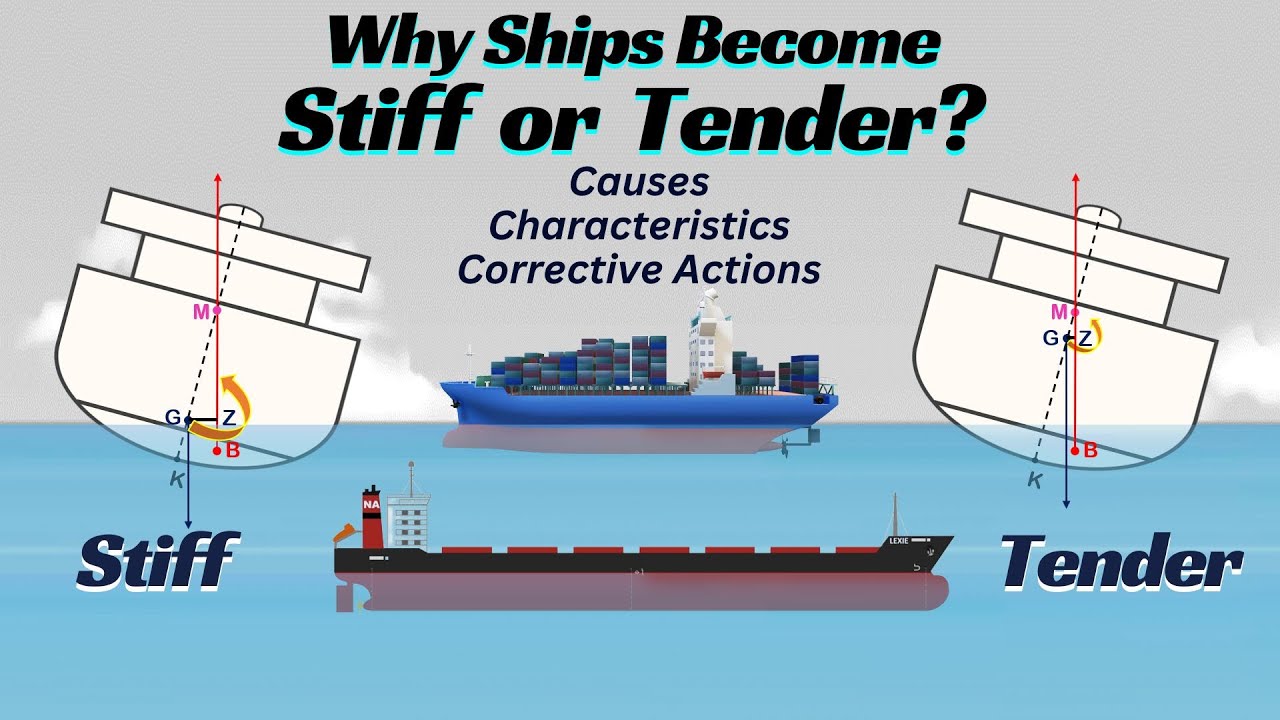

These distinct physical behaviors are not accidental; they are mathematically predictable conditions based entirely on how a vessel is loaded. In the maritime industry, we define these two opposing behaviors as stiff versus tender ship characteristics. The way a ship rolls dictates the physical comfort of the crew, the safety of the cargo, and the overall seaworthiness of the vessel. It all comes down to the critical distance between the ship’s Center of Gravity (the downward weight) and its Metacenter (the upward pivot point of buoyancy). This distance is known as the Metacentric Height (GM). Let’s explore how a large or small GM dictates whether a ship will be stiff or tender.

The Stiff Ship: Quick, Violent, and Unyielding

A vessel is described as a “stiff ship” when it has a very large Metacentric Height (GM). This happens when the ship’s Center of Gravity is located extremely low in the hull, far below the Metacenter. You will typically see this condition on vessels carrying incredibly dense, heavy cargo—like raw iron ore or solid steel coils—which must be loaded deep into the lowest cargo holds.

Because the heavy weight is concentrated so close to the bottom of the ship, the vessel possesses an enormous, highly aggressive righting moment. When a wave pushes a stiff ship to the side, it fights back almost instantly. The ship acts like a heavily weighted pendulum on a very short string; it aggressively “snap-rolls” back to its perfectly upright, vertical position. The time it takes for the ship to roll from one side to the other—known as the rolling period—is very short, often just a few seconds.

While a stiff ship is exceptionally stable and virtually impossible to capsize, it is notoriously unpleasant to sail on. The rapid, jerky, and violent rolling motions are physically exhausting for the crew, often leading to severe seasickness and fatigue. More importantly, this violent whipping motion places immense structural stress on the ship itself. It can easily snap the steel chains holding cargo in place, turning heavy containers or equipment into dangerous projectiles. To manage these risks, the International Maritime Organization (IMO) provides strict guidelines on proper cargo securing manuals, ensuring that lashings are strong enough to withstand the violent accelerations of a stiff ship.

The Tender Ship: Slow, Sluggish, and Gentle

On the complete opposite end of the spectrum is the “tender ship.” A vessel becomes tender when it has a very small, but still positive, Metacentric Height (GM). This occurs when the Center of Gravity is relatively high up in the ship, sitting just slightly below the Metacenter. This condition is incredibly common on modern container ships stacked high with lighter boxes, or on Roll-On/Roll-Off (Ro-Ro) car carriers that have massive, tall superstructures filled with relatively light vehicles.

Because the Center of Gravity is so high, the ship has a very weak righting moment. When a wave pushes a tender ship to the side, it does not fight back aggressively. Instead, it yields to the water, rolling over slowly and lingering at the edge of the lean before sluggishly and gently pulling itself back upright. The rolling period for a tender ship is very long, sometimes taking 20 to 30 seconds to complete a single roll from port to starboard and back again.

Sailing on a tender ship is generally much more comfortable for the crew. The gentle, sweeping motions are easy to walk through, and there is very little violent stress placed on the cargo lashings. However, this comfort comes at a cost to the ship’s safety margin. Because the Center of Gravity is already so high, a tender ship feels “tippy.” It has a much smaller reserve of stability to rely on if the weather turns catastrophic. Respected maritime safety bodies like the United States Coast Guard (USCG) heavily monitor the stability calculations of top-heavy ships to ensure they do not accidentally cross the line from being safely tender to being completely unstable.

Finding the Perfect Balance for the Voyage

For the professionals managing a ship’s daily operations, neither a highly stiff nor an overly tender condition is ideal. A ship that is too stiff will damage its own cargo and exhaust its crew, while a ship that is too tender risks losing its ability to right itself in a severe storm. The ultimate goal is to achieve a perfectly balanced Metacentric Height (GM)—one that provides enough righting energy to keep the ship safe, but is soft enough to provide a manageable, comfortable ride.

Striking this balance requires meticulous planning before the ship ever leaves the dock. The crew uses advanced loading computers to map out exactly where every ton of cargo should go. If they know they are loading dense, heavy cargo that will naturally make the ship too stiff, they might intentionally load some of that weight in the higher “tween decks” to raise the Center of Gravity slightly and soften the roll.

Conversely, if the cargo is light and bulky, making the ship dangerously tender, the crew will pump thousands of tons of heavy seawater into the ship’s lowest double-bottom ballast tanks. This artificial weight acts as an anchor, dragging the Center of Gravity back down to a safer, more stable level. Mastering the delicate balance between stiff and tender ship characteristics is a daily mathematical puzzle that keeps the world’s shipping lanes operating smoothly and safely.
