The Impact of Hull Shape: How the Rise of Floor Affects Ship Stability

To truly appreciate how a massive steel ship balances, you have to imagine it lifted completely out of the water in a drydock. Down below the waterline, the hull is almost never a simple, rectangular box. Ship hulls are meticulously sculpted with specific curves and angles designed to conquer the dynamic environment of the ocean. One of the most important, yet often overlooked, design features is the “rise of floor.” But how exactly does this subtle upward angle at the very bottom of the hull dictate the way a vessel behaves when it first hits the water?

In naval architecture, every single inch of the hull’s shape changes the invisible tug-of-war between the downward pull of gravity and the upward push of buoyancy. Understanding the relationship between the rise of floor and initial stability is crucial for designing a ship that is not only safe from capsizing but also comfortable for the crew to live and work on. Let’s explore how shaving away the bottom corners of a ship fundamentally changes its balance at sea.

Defining the Rise of Floor (Deadrise)

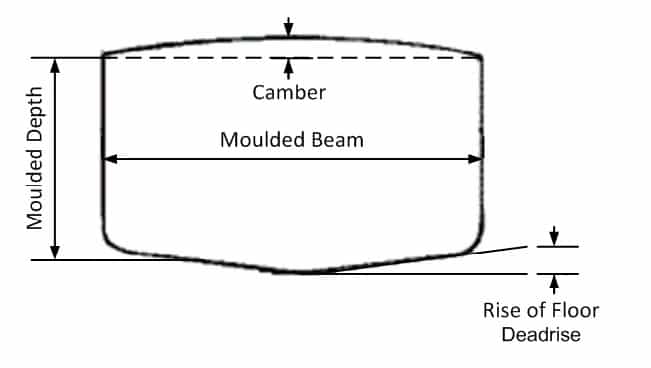

To understand this concept, picture a ship sliced perfectly in half from side to side, allowing you to look straight down its internal corridors. At the very bottom, running straight down the middle from the front to the back, is the ship’s keel—its structural spine. From this center keel, the bottom of the hull extends outward toward the sides (the bilges). On most large ocean-going vessels, this bottom plating does not lay perfectly flat. Instead, it slopes slightly upward as it moves outward from the center. This upward slope is called the “rise of floor,” though mariners and builders also commonly refer to it as “deadrise.”

Why do designers add this angle instead of just building a simple, flat-bottomed box? It serves several vital practical purposes. A slight rise of floor helps water flow smoothly and efficiently under the hull toward the propeller at the back of the ship, which significantly reduces drag and saves fuel. Internally, it is highly beneficial because any liquids that leak into the ship’s lower compartments, or liquid cargo being pumped out of tanks, will naturally flow downhill toward the center keel where the ship’s primary suction pumps are located. The precise geometry of these slopes is rigorously studied and refined by professional organizations like the Society of Naval Architects and Marine Engineers (SNAME), ensuring that hull shapes are perfectly optimized for their intended ocean routes.

The Trade-off: Flat Bottoms vs. Angled Bottoms

Now, let’s connect this physical shape to a vessel’s initial stability—which is how strongly a ship resists leaning over (heeling) at very small angles, usually between zero and ten degrees.

Imagine a perfectly flat-bottomed ship, like a heavy river cargo barge. It has zero rise of floor. Because it is shaped like a brick, it has the maximum possible volume of hull located right at its lower, outer edges. When a gentle breeze or a small wave pushes this barge to lean even a fraction of a degree, that massive, square outer corner plunges directly into the water. This immediately creates a massive upward push of buoyancy on that side, fighting back against the lean instantly. Therefore, a flat-bottomed ship has incredibly high initial stability.

Now, look at a ship designed with a noticeable rise of floor. By sloping the bottom upward, the naval architect has essentially “cut away” those heavy lower outer corners of the hull. When this angled ship starts to lean, there is simply less hull volume immediately pressing into the water at the edges compared to a flat barge. Because there is less underwater volume fighting back right away, the righting force is weaker. Therefore, the rise of floor and initial stability are inversely related: increasing a ship’s rise of floor generally decreases its initial stability compared to a perfectly flat-bottomed vessel of the exact same width and weight.

The Metacenter and the Physics of Comfort

To understand why a naval architect would intentionally lower a ship’s stability, we have to look at the invisible pivot point of the ship, known as the Metacenter. Because a hull with a rise of floor has less volume at its lower edges, the upward pushing force of the water (the Center of Buoyancy) does not shift outward toward the leaning side as quickly or aggressively when the ship tips. Because this upward push stays closer to the center, the resulting Metacenter sits slightly lower in the ship’s overall geometry.

A lower Metacenter results in a mathematically smaller Metacentric Height (GM). While this means the initial stability is reduced, it is actually a brilliant, highly deliberate design choice for ocean-going ships. If a ship has too much initial stability (like our flat-bottomed barge), it is considered too “stiff.” When a wave pushes a stiff ship, it reacts violently, snapping back upright so fast and so aggressively that it can break cargo lashings and severely injure the crew.

By introducing a rise of floor and slightly lowering the initial stability, designers soften that righting force. The ship becomes “tender.” It rolls more smoothly, slowly, and gently over the waves. It is a perfect, calculated compromise. Safety protocols governed by authorities like the International Maritime Organization (IMO) ensure that while the initial stability is softened for a comfortable ride, the ship still retains massive amounts of reserve stability to safely handle violent storms at large angles of heel.
