The Physics of Ship Stability: How Waterplane Area Influences the Metacenter

Have you ever tried to stand on a floating round log? Unless you have incredible balance, the log will instantly roll over and drop you into the water. Now, imagine standing on a wide, flat wooden raft. It feels solid, stable, and completely safe to walk across. The dramatic difference in stability between the rolling log and the stable raft comes down to one crucial feature: the size and shape of their “footprint” on the water.

In the science of ship design, we call this waterline footprint the waterplane area. To understand how a massive steel ship weighing tens of thousands of tons stays perfectly upright in a violent ocean storm, we have to look closely at this exact measurement. The size and width of a ship’s water footprint directly dictate the height of its Metacenter—the invisible, critical pivot point that controls the vessel’s balance. Let us explore exactly how the waterplane area and metacenter are permanently linked, and why making a ship just a few feet wider changes everything about its safety.

What is the Waterplane Area?

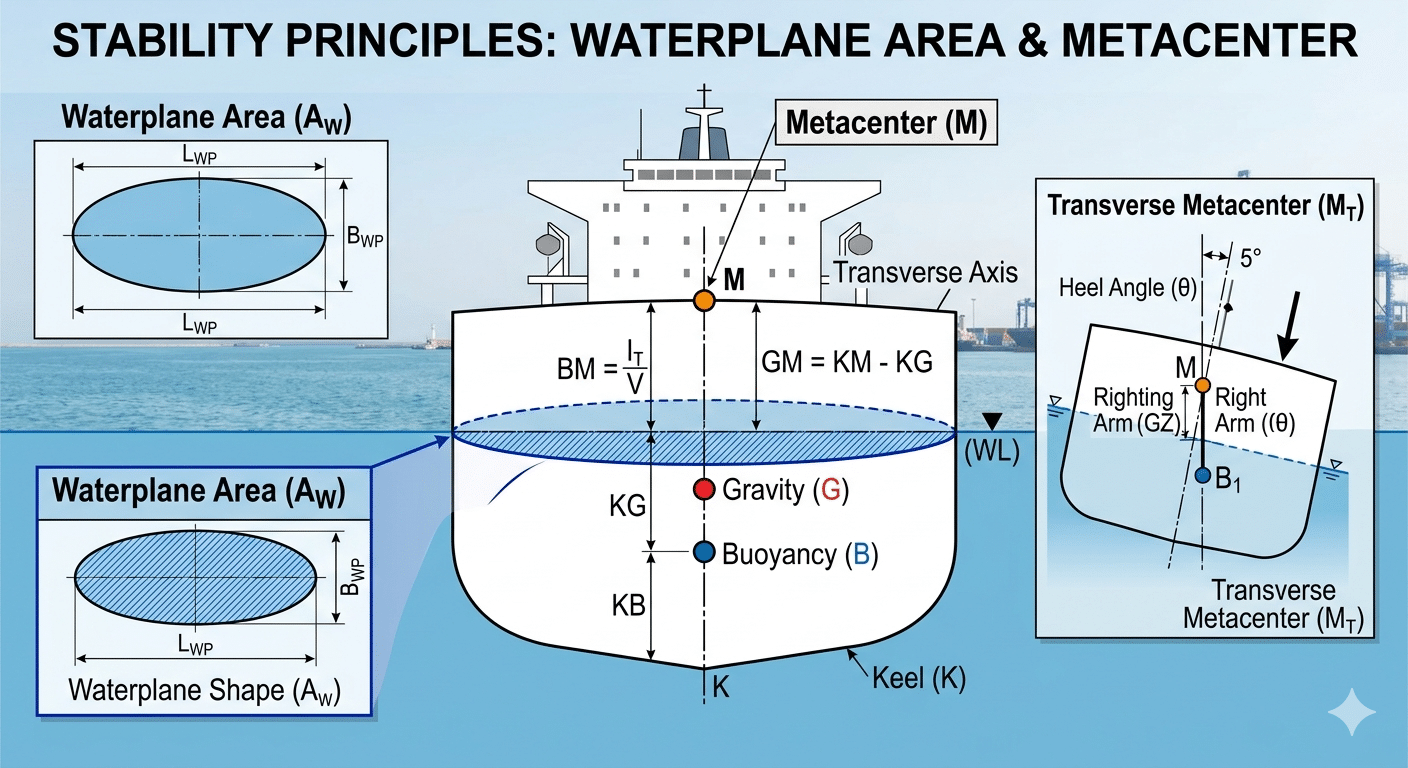

To picture the waterplane area, imagine taking a giant saw and slicing a floating ship perfectly horizontally, right at the exact line where the ocean surface touches the steel hull. If you lifted away the entire top half of the ship and looked straight down at the remaining bottom half, the outline you would see is the waterplane area. It is the literal geometric plane where the vessel intersects the water.

This area is not just a static measurement; it is the active battlefield where the ship fights against the waves. When a gust of wind pushes a ship to lean to one side (a heel), the shape of this waterplane changes. On the side leaning into the water, a wedge of the hull is pushed below the surface. On the opposite side, a wedge of the hull is lifted out of the water. The physical size of this water footprint dictates exactly how much new buoyancy—or upward pushing force—is generated when the ship tilts.

A vessel with a large, wide waterplane area, like a cargo barge, covers a massive amount of surface space. When it leans even a fraction of a degree, it shoves a huge volume of hull into the water, instantly generating a massive upward push to correct the lean. Because this area is so critical to a vessel’s survival, global regulatory bodies like the International Maritime Organization (IMO) require precise waterplane calculations for every newly constructed ship to ensure it possesses enough natural fighting power to handle heavy seas safely.

The Upward Shift of the Metacenter

So, how does this watery footprint affect the ship’s invisible pivot point? The Metacenter (M) is the theoretical hinge high up in the ship’s geometry where the upward pushing forces of buoyancy intersect. For a ship to remain safely upright, this Metacenter must sit high above the ship’s Center of Gravity. The relationship between the water footprint and this pivot point is absolute: a larger, wider waterplane area directly pushes the Metacenter higher up the vertical axis.

This happens because of a mathematical principle known as the Moment of Inertia. When a wide ship leans, the center of its buoyancy shifts outward toward the leaning side very rapidly and aggressively. Because the upward push shifts so far outward, the intersecting lines of force meet much higher up in the ship.

The most fascinating part of this relationship is how heavily it relies on the ship’s width (the beam). In the stability formulas used to calculate the Metacenter’s height, the width of the waterplane is multiplied by itself three times (cubed). This means the relationship is not simply a one-to-one ratio. If you make a ship’s waterplane just a little bit wider, the Moment of Inertia absolutely skyrockets, dragging the Metacenter up with it. This is why a narrow racing canoe feels incredibly unstable and “tippy” (it has a low Metacenter), while a wide, flat-bottomed ferry feels like standing on solid ground (it has a very high Metacenter).

Real-World Design Choices and Balance

Because the waterplane area is the most powerful tool for raising the Metacenter, you might assume that shipbuilders should simply make every single ocean vessel as wide as possible. However, in the careful art of maritime design, maximizing one feature always creates a consequence somewhere else.

If designers create a massive waterplane area to push the Metacenter extremely high, the ship becomes incredibly stable. However, as we have learned, a ship with a very high Metacenter becomes a “stiff” ship. It will fight back against ocean waves so violently and aggressively that the rapid snap-rolling motion will cause severe seasickness for the crew and can easily snap the steel chains holding cargo in place.

Therefore, naval architects must carefully sculpt the hull to find the perfect compromise. They design the waterplane area to be wide enough to push the Metacenter to a safe, legally compliant height, ensuring the vessel will never capsize. At the same time, they keep the waterplane narrow enough so that the Metacenter does not rise too high, allowing the ship to roll gently and comfortably. National authorities like the United States Coast Guard (USCG) strictly evaluate these specific design trade-offs before a vessel is ever permitted to carry commercial goods or human passengers on the open ocean.
