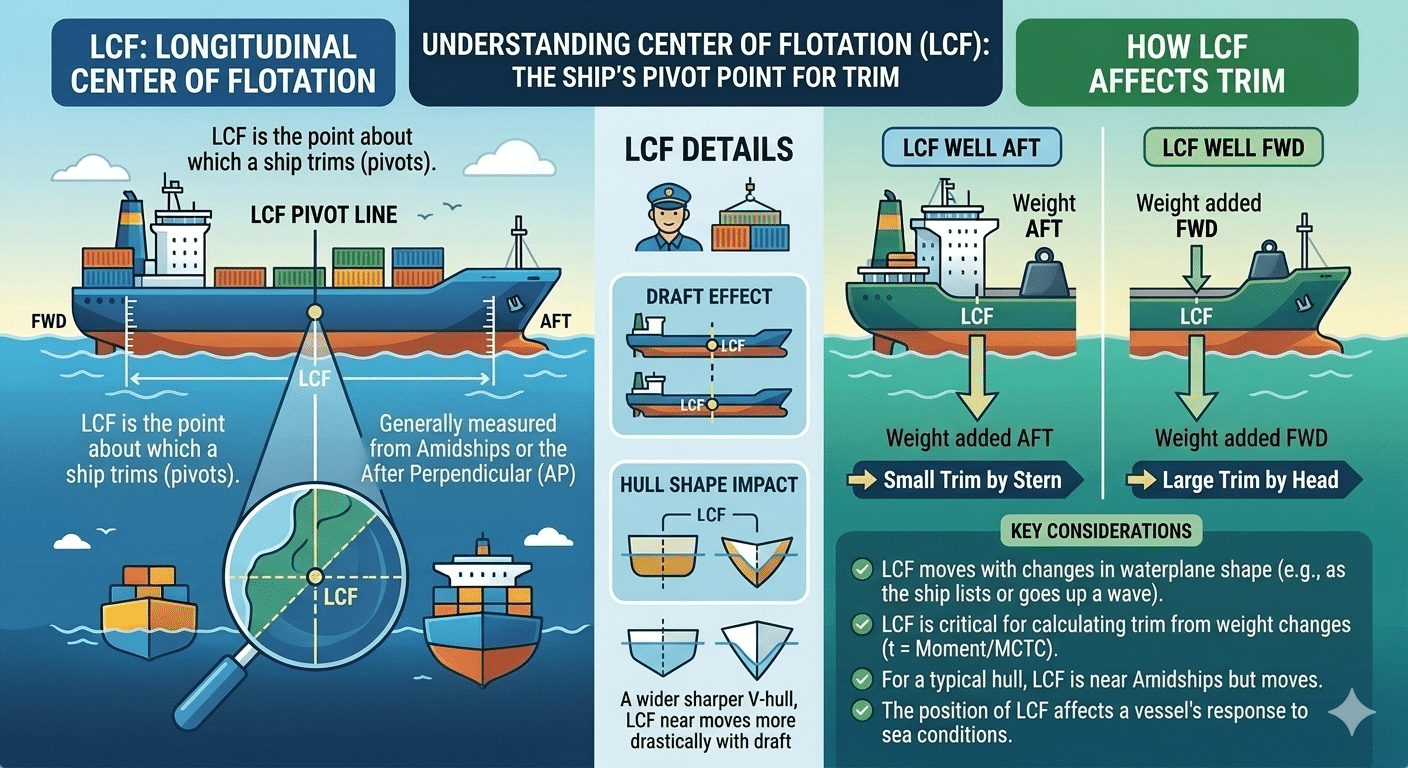

The Secret Pivot Point: Explaining the Center of Flotation (F)

Have you ever played on a seesaw at the park? If you sit on one end, the other end goes up in the air. The whole wooden board tilts on a metal hinge in the middle. A massive cargo ship floating in the ocean works the exact same way. When you put heavy steel boxes on the front of a ship, the front sinks deeper. The back of the ship lifts up.

But where is the hinge on a floating boat? On a ship, this invisible hinge is called the Center of Flotation. In naval architecture, it is simply called “F”. Understanding this invisible pivot point is the absolute secret to loading ships safely. It controls how the ship drives, how much fuel it burns, and how safe the crew is. Let us explore what this point is, how it moves around, and why captains rely on it every single day.

What is the Center of Flotation?

To find this invisible hinge, we must first look closely at the water. Imagine a giant ship floating calmly in a quiet harbor. Now, imagine taking a massive saw and cutting the ship perfectly flat, exactly where the steel hull meets the surface of the water. If you lift away the top half of the ship and look down, you will see a large, flat shape. We call this flat geometric shape the “waterplane.”

The Center of Flotation is simply the exact middle of that flat waterplane shape. Think of it like a craft project. If you cut that exact waterplane shape out of a heavy piece of cardboard, you could balance that cardboard perfectly on the tip of your finger. The spot where your finger rests is point F.

It is extremely important to know that point F is almost never in the true middle of the ship. Look at a modern cargo ship. The back of the ship is very wide to hold the massive engines. The front of the ship is very narrow and pointy to cut through the ocean waves. Because the back is wider, the exact middle of the waterplane shape is pulled backward. Therefore, the pivot point usually sits a little bit closer to the back (the stern) of the vessel. Whenever the ship tilts forward or backward, it always pivots exactly on this specific spot.

Why Does the Pivot Point Move?

On a wooden seesaw at the park, the metal hinge never moves. It is bolted firmly to the ground. However, on a floating ship, the Center of Flotation moves constantly. Why does this happen? It happens because the physical shape of the ship’s hull changes.

Look at the front of a large vessel. Down near the very bottom, the hull is extremely narrow. Higher up, near the main walking deck, the hull flares out and becomes very wide. When a crew loads heavy cargo, the entire vessel naturally sinks deeper into the ocean. As it sinks, a brand new, wider part of the hull touches the water. This completely changes the shape of the waterplane.

Because the waterplane shape has changed, the exact geometric middle of that shape also changes. Therefore, point F physically moves. When the ship is completely empty and floating high, point F might be located far in the back. When the ship is fully loaded and floating deep, point F might move closer to the middle. During a long voyage, the ship burns hundreds of tons of fuel. This makes the ship lighter, causing it to rise. As it rises, the waterplane changes again, and point F moves once more. Captains must always know exactly where this point is before they start moving heavy cargo around the deck.

How the Pivot Point Keeps Ships Balanced

Knowing the exact location of the Center of Flotation is vital for a safe ocean voyage. When a crew loads a heavy shipping container, they are adding massive weight to the giant floating seesaw. If a crane drops a heavy box exactly on top of point F, the ship will simply sink straight down. It will not tilt forward, and it will not tilt backward.

However, if they place that heavy box far at the front of the ship, the vessel will tilt. The front sinks, and the back lifts. In the shipping world, this front-to-back tilt is called “trim.” Because the ship always pivots exactly around point F, the crew can use simple math to predict exactly how much the ship will tilt before they even move the box.

This simple math prevents terrible accidents. If the front of the ship sinks too deep, it will crash violently into the waves and damage the steel hull. If the back lifts too high, the propeller comes out of the water, and the ship cannot drive forward. To prevent this, strict global rules from the International Maritime Organization (IMO) require ships to carry detailed stability manuals. These manuals tell the crew exactly where point F is located at every possible depth. Global engineering groups like the Society of Naval Architects and Marine Engineers (SNAME) design these complex hull shapes to ensure the pivot point keeps the ship safe, efficient, and easy to steer.

Correcting the Balance Before Sailing

A ship rarely finishes loading cargo with a perfect balance. Often, the ship leans too far forward or too far backward. The crew must fix this tilt before they sail into the open ocean. They use the Center of Flotation to solve the problem quickly and safely.

Ships have massive, empty tanks built into the bottom of the hull. These are called ballast tanks. The crew can pump heavy ocean water into these tanks to change the weight of the ship. If the ship is tilting too far forward, the captain knows they need to add weight behind point F to push the back end down.

They use computers to see exactly how far point F is from the back ballast tanks. With a simple calculation, they know exactly how many tons of water to pump into the back of the ship. As the water fills the back tanks, the ship slowly acts like a seesaw. It pivots on point F, lifting the heavy front end out of the water. Within a few hours, the ship is perfectly level and ready to sail safely. Understanding this invisible hinge saves time, saves fuel, and protects everyone onboard.
