Understanding the Metacentric Radius (BM) and How to Calculate It

Have you ever wondered how engineers know a ship will float safely before it is even built? They do not rely on guesses. They rely on simple, proven mathematics. A ship is a massive steel structure weighing thousands of tons. Yet, it glides over the ocean smoothly. To make this happen, we must carefully balance the shape of the ship’s hull.

One of the most important measurements we use is called the Metacentric Radius. We usually just call it “BM.” This measurement is a pure reflection of the ship’s physical shape in the water. It tells us how much natural stability the hull design provides. If you want to understand how ships fight against ocean waves, you must understand the BM. In this article, we will explore exactly what the Metacentric Radius is, why it keeps ships safe, and the simple math used to calculate it.

What Exactly is the Metacentric Radius (BM)?

To understand the Metacentric Radius (BM), you first need to know two key points on a ship. The first point is the Center of Buoyancy. We call this point “B.” Point B is the exact center of the underwater part of the ship. It is the spot where the ocean pushes upward to keep the ship afloat.

The second point is the Metacenter. We call this point “M.” Imagine a ship leaning to one side. As it leans, the upward push of the water shifts. Point M is the invisible pivot point high up in the ship where these pushing forces meet. You can think of Point M as the hinge of a pendulum.

The Metacentric Radius (BM) is simply the vertical distance between point B and point M. It acts just like the string of a pendulum. When the BM distance is large, the ship has a lot of natural power to snap back to an upright position. When the BM is small, the ship is much weaker against the waves. The length of this invisible “string” is entirely decided by the shape of the hull. It is the true foundation of a ship’s stability.

How Does Hull Shape Change the BM?

The size of the Metacentric Radius depends directly on the physical shape of the ship. Specifically, it depends on the part of the ship that touches the water surface. We call this area the “waterplane.” The most important rule to remember is this: width is everything.

If a ship is very wide at the water level, it will have a very large BM. Think about a flat, wide cargo barge on a river. Because it is so wide, it is incredibly stable. It takes a massive amount of force to tip it over. The wide shape creates a long Metacentric Radius. Now, think about a narrow racing canoe. A canoe is very thin at the water level. Because it is thin, its BM is very small. This is why a canoe feels very “tippy” and unstable.

Depth also plays a role. As a ship gets heavier and sinks deeper into the water, its underwater volume grows. This changes the BM as well. Naval architects spend months designing the perfect hull curves. They follow strict safety guidelines from groups like the International Maritime Organization (IMO) to make sure the hull shape creates a safe BM. The goal is to make the ship wide enough to stay upright, but sleek enough to move fast.

The Math: How to Calculate the Metacentric Radius

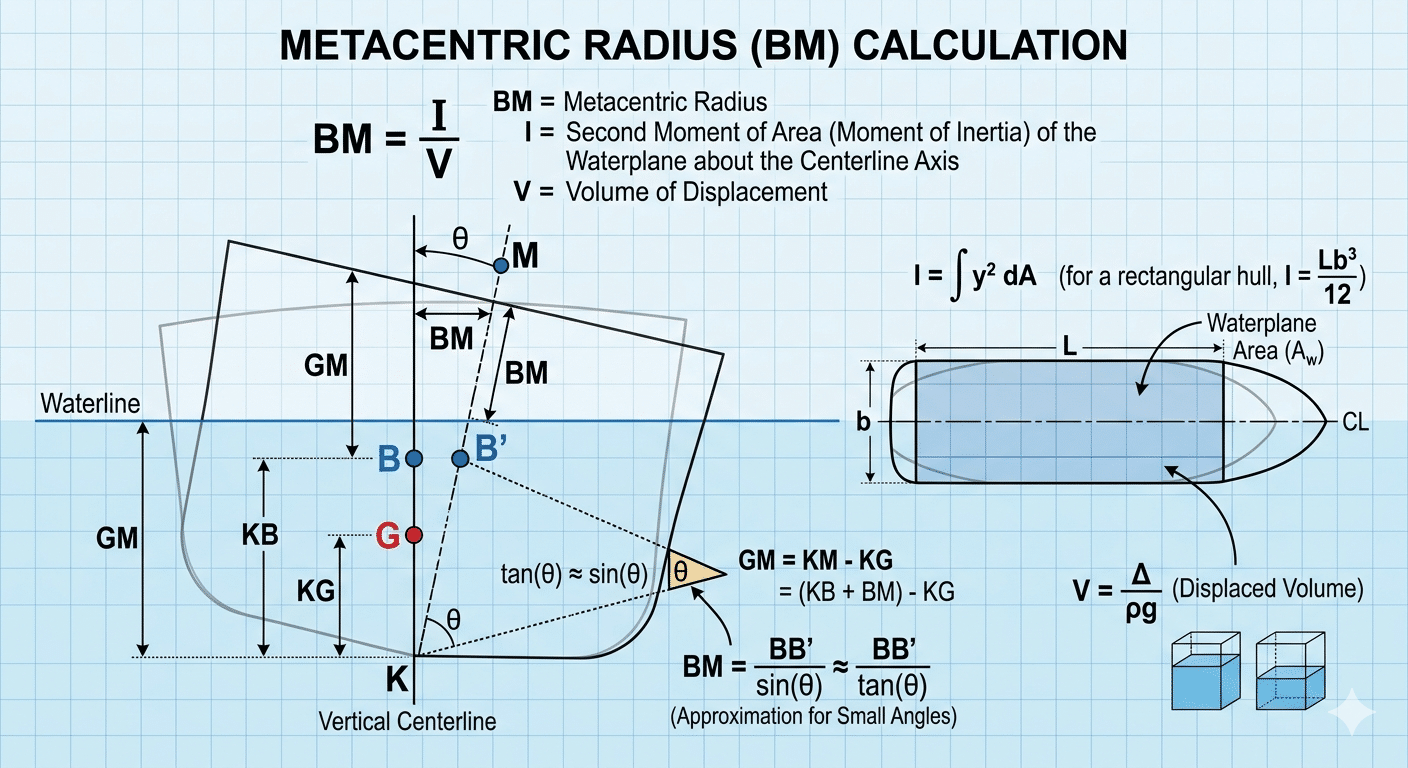

Calculating the metacentric radius BM calculation looks complex at first, but it is actually based on a very simple fraction. To find the BM, we divide a measurement of the ship’s width by the total volume of water the ship pushes aside.

Here is the exact mathematical formula we use:

BM = \frac{I}{\nabla}

Let’s break down these two simple parts:

• The Top Number ($I$): This stands for the “Moment of Inertia” of the waterplane. This is a mathematical score based on the shape of the ship exactly where it cuts through the water. It heavily rewards width. For a perfectly rectangular barge, you find $I$ by taking the length, multiplying it by the width cubed, and dividing by 12 (I = \frac{L \times B^3}{12}). Because the width is cubed, making a ship just a little bit wider makes this top number massive.

• The Bottom Number ($\nabla$): This symbol is called “Nabla.” It stands for the Volume of Displacement. This is simply the total cubic meters of water the ship pushes out of the way.

To find the BM, you simply divide I by \nabla. Modern computers do this math in seconds today. However, every professional ship designer learns to do it by hand. Global engineering groups like the Society of Naval Architects and Marine Engineers (SNAME) ensure these foundational formulas are used correctly on every vessel built around the world.
