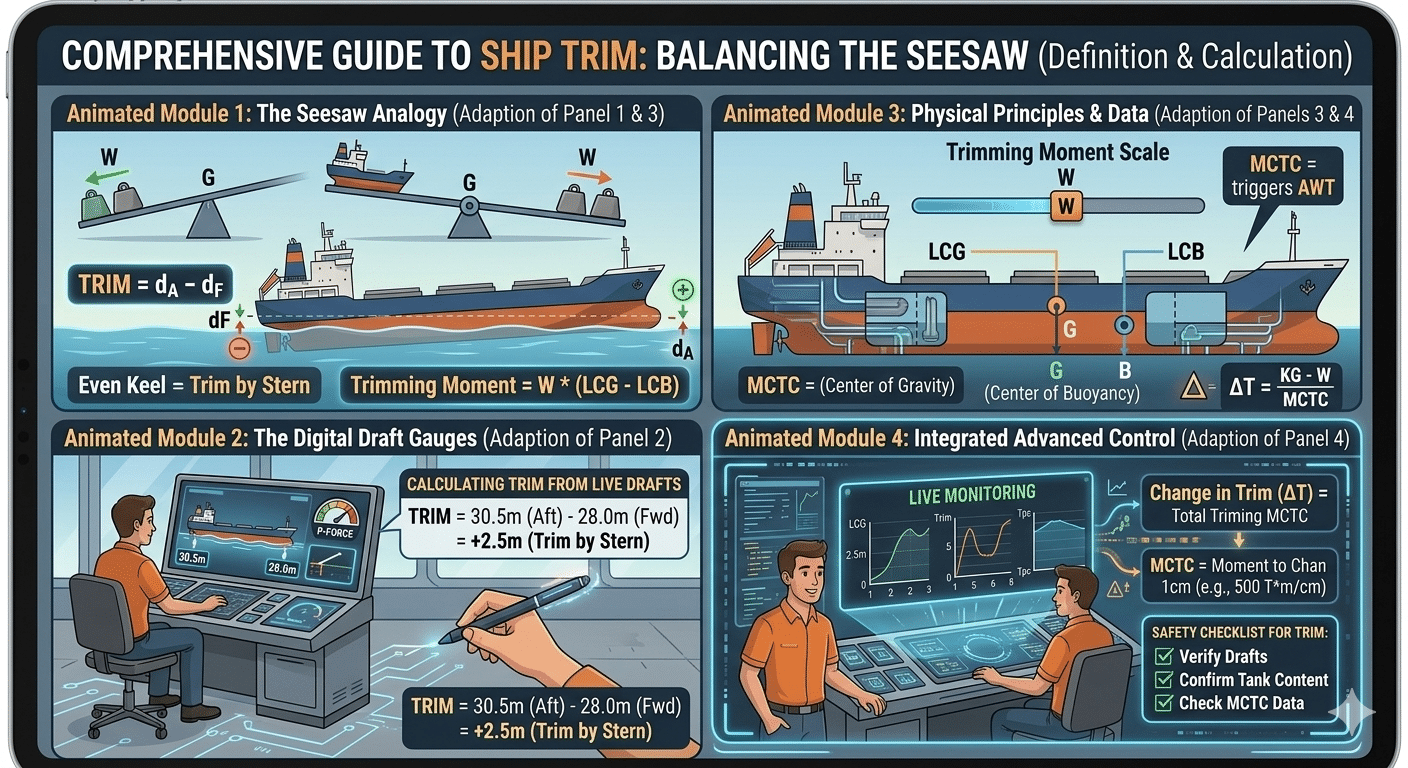

Balancing the Seesaw: Defining Ship Trim and How to Calculate It?

Imagine sitting on a playground seesaw. If you sit perfectly in the middle, the board stays flat. If you slide backward, your end hits the dirt. A massive ocean cargo ship works exactly the same way. While a sideways tilt is called a “list,” a ship can also tilt forward or backward.

In the maritime industry, this front-to-back tilt is called Trim. Controlling this balance is a daily obsession for deck officers. A ship that leans too far forward will plow dangerously into the waves. A ship that leans too far backward wastes massive amounts of engine fuel. Let us explore exactly how to define trim, the hidden pivot point inside the ship, and the simple math used to calculate trim after loading a weight.

Defining the Front-to-Back Balance

To define trim, you simply have to look at the water marks painted on the side of the ship’s hull. These numbers tell you the “draft,” which is how deep the ship is sitting in the water.

You read the draft at the very front of the ship (the bow) and the draft at the very back (the stern). Trim is defined as the mathematical difference between the forward draft and the aft draft.

• Even Keel: If the front draft is 10 meters and the back draft is 10 meters, the difference is zero. The ship is perfectly flat.

• Trimmed by the Stern: If the back draft is 11 meters and the front draft is 9 meters, the ship is leaning backward. The stern is deeper. This is the normal, safest way most ships sail.

• Trimmed by the Bow: If the front draft is deeper than the back, the ship is leaning forward. This is usually avoided, as it makes the ship incredibly hard to steer.

The Invisible Pivot Point (LCF)

When you load a heavy steel container onto a ship, the vessel does not just sink straight down. It tips. But where exactly does it tip?

A ship does not pivot perfectly in the middle. Because the back of a ship is usually wider than the pointy front, the true pivot point is pushed slightly backward. In naval architecture, this longitudinal pivot point is called the Center of Flotation (LCF).

You can think of the LCF as the exact hinge of the seesaw. If you drop a heavy weight exactly on top of the LCF, the ship will sink straight down, perfectly flat. But if you drop a weight anywhere else, it creates a twisting force around that hinge. We call this twisting force a “Trimming Moment.” The further away you place the weight from the LCF hinge, the more violently the ship will tip.

How to Calculate the New Trim

Before a crane drops a 50-ton piece of cargo onto the deck, the chief officer must prove mathematically how the ship will react. They use a simple, three-step calculation to find the new drafts.

Step 1: Find the Trimming Moment First, the officer calculates the twisting power of the new cargo. They multiply the weight of the cargo by its exact distance from the LCF pivot point. Moment = Weight $\times$ Distance

Step 2: Use the Ship’s Magic Number (MCTC) Every ship is built differently. A massive supertanker is very hard to tip, while a small ferry tips easily. The shipbuilder provides a special constant number in the ship’s manual called the MCTC (Moment to Change Trim one Centimeter). This number tells the officer exactly how much twisting power it takes to tilt that specific ship by just one centimeter.

Step 3: Divide to Find the Total Change To find the exact change in the ship’s tilt, the officer divides the total twisting power (from Step 1) by the ship’s magic number (from Step 2).

This formula gives the total change of trim in centimeters. If the cargo was loaded in the front, the front draft gets deeper by half of this amount, and the back draft lifts up out of the water by the other half. The seesaw has officially shifted!

Pertinent Q&A

1. Does moving fuel between tanks change the trim? Yes, constantly. Just like a physical piece of cargo, pumping heavy fuel oil from a forward tank to a rear tank completely shifts the weight balance. Captains use these internal fuel and water pumps every single day to actively adjust the ship’s trim without needing cranes.

2. Why do ships normally prefer to be ‘Trimmed by the Stern’? The massive propeller and the steering rudder are located at the very back of the ship. By keeping the stern slightly deeper in the water, the captain guarantees the propeller stays completely submerged. If the propeller comes out of the water, it wastes energy, vibrates violently, and can damage the engine.

3. What happens if I load a weight exactly on the LCF? If you place a weight exactly on the Center of Flotation, the distance is zero. Therefore, the Trimming Moment is zero. The ship will not tilt forward or backward. Instead, it will simply sink straight down a tiny bit. This is called “parallel sinkage.”

4. Does the shape of the hull change the MCTC? Yes. A ship with a very long, wide, and flat waterline will have a massive MCTC, meaning it is extremely stubborn and hard to tilt. As a ship gets heavier and sinks deeper into the water, its waterline shape changes, which means the MCTC value also changes slightly during a voyage.
