The Steel Solution: What are Longitudinal Baffles and How Do They Reduce FSE?

A wide, partially filled liquid tank is the ultimate enemy of ship stability. Because water and fuel are heavy, allowing thousands of tons of liquid to rush from one side of the hull to the other can effortlessly capsize a massive vessel. This sloshing creates the Free Surface Effect (FSE), which mathematically steals the ship’s safe twisting power.

Because shipbuilders cannot always make the ship itself narrower, they must change the internal geometry of the ship. Their ultimate weapon against this moving liquid is the longitudinal bulkhead. Let us explore exactly what longitudinal baffles are, and how they reduce FSE using the brutal, unforgiving mathematics of the “breadth cubed” rule.

Dividing the Enemy: What Are Longitudinal Baffles?

A longitudinal baffle is a massive, solid steel wall welded deep inside a ship’s cargo or fuel tank. “Longitudinal” means the wall runs lengthwise, from the front of the ship toward the back, perfectly parallel to the keel.

These are not just flimsy dividers. They are heavily reinforced, completely watertight bulkheads. When you install a longitudinal baffle straight down the center line of a massive tank, you physically destroy the original tank. You replace it with two brand new, completely separated, narrower tanks.

If the ship leans to the right, the liquid in the left tank cannot rush over to the right side of the ship. It slams violently into the solid steel baffle and stops dead in its tracks. By stopping the liquid from crossing the center line, the baffle physically prevents the weight from moving to the extreme outer edges of the hull. This drastically reduces how far the ship’s Center of Gravity gets pulled sideways.

The Mathematics of the Baffle (The 75% Rule)

To understand exactly how longitudinal baffles reduce FSE, we must look at the mathematical formula used by deck officers. The stability penalty of a tank is driven almost entirely by the tank’s width (Breadth, or $B$).

In the Free Surface formula, the width is cubed (B3). This is the key to the baffle’s incredible power.

Imagine a massive fuel tank that is 20 meters wide.

• If there are no baffles, the penalty is calculated using 203.

• $20\times 20\times 20=8,000$.

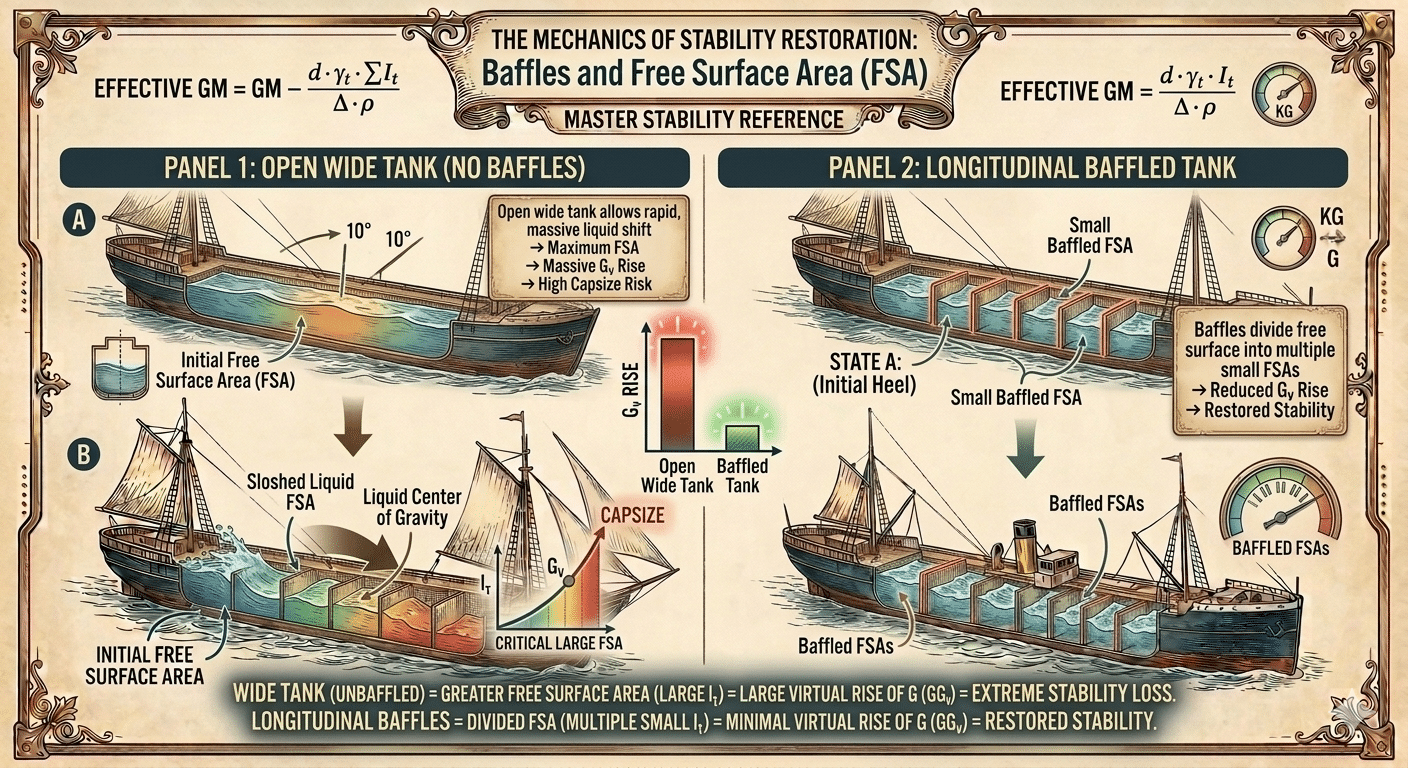

Now, the engineers weld one solid longitudinal baffle directly down the middle. We now have two separate tanks, each only 10 meters wide.

• The penalty for the first tank is 103=1,000.

• The penalty for the second tank is 103=1,000.

• We add them together: $1,000+1,000=2,000$.

By installing just one single steel wall, the mathematical penalty instantly drops from 8,000 down to 2,000. The baffle effortlessly destroys 75% of the danger.

If an engineer installs three baffles, splitting the tank into four equal sections, the penalty drops by an astonishing 93.75%. This is why modern oil tankers and liquid natural gas (LNG) carriers look like giant steel honeycombs inside. Global authorities like the International Maritime Organization (IMO) legally mandate these internal walls so that wide ships can survive extreme hurricanes.

Swash Bulkheads vs. Watertight Baffles

It is crucial to understand the difference between a true longitudinal baffle and a “swash bulkhead.”

A swash bulkhead is a steel wall with massive holes cut into it. Its only job is to physically slow down the speed of the crashing waves inside the tank, preventing the heavy water from physically denting the outer hull.

However, because the water can eventually leak through the holes and level out across the entire width of the ship, a swash bulkhead does absolutely nothing to reduce the FSE mathematically. Only a completely solid, watertight longitudinal baffle changes the math and restores the ship’s safety margin (GM).

Pertinent Q&A

1. Why don’t naval architects just put dozens of baffles in every tank? While more baffles mean less FSE, they create massive operational problems. Every solid steel wall adds hundreds of tons of permanent, dead weight to the ship. This means the ship can carry less paying cargo. Furthermore, cleaning, inspecting, and pumping thick oil out of dozens of tiny, separate compartments requires incredibly complex piping systems and massive amounts of manual labor.

2. Do longitudinal baffles change the ship’s Center of Gravity? Yes, but only slightly due to the physical weight of the steel wall itself. The true power of the baffle is that it stops the liquid from dragging the Center of Gravity off to the side when the ship rolls.

3. What is a transverse baffle, and does it stop FSE? A transverse baffle is a wall that runs horizontally from the left side of the ship to the right side of the ship. It stops liquid from rushing forward and backward (which affects the ship’s “trim”). However, because it does not stop the liquid from moving side-to-side, a transverse baffle does absolutely nothing to reduce the side-to-side rolling FSE penalty.

4. Are longitudinal baffles used in dry cargo ships? Yes. While grain, coal, and sand are not liquids, they act very much like liquids if the ship rolls violently enough. This is called a “grain shift.” To prevent massive piles of grain from sliding to one side and capsizing the vessel, dry bulk carriers are often designed with angled upper tanks or temporary wooden centerline bulkheads to restrict the width of the shifting cargo.
