The Phantom Weight: How FSE Affects the Effective GM of a Vessel
A ship might look perfectly safe on paper. A deck officer can add up all the cargo weights, calculate the Center of Gravity, and find a massive, safe Metacentric Height (GM). But paper does not slosh. If the ship has half-empty fuel or water tanks, the liquid inside will violently rush from side to side when the ship rolls.
This moving liquid creates the Free Surface Effect (FSE). This moving water plays a terrifying trick on the ship’s physics. It secretly steals the ship’s stability away without adding a single ounce of actual weight. To understand if a ship will survive a storm, a captain cannot just look at the printed GM. They must calculate the ship’s true, hidden balance. Let us look at exactly how FSE affects the effective GM of a vessel, the simple math used to find it, and why ignoring it can lead to disaster.
The Difference Between Solid GM and Effective GM
To understand this danger, we have to split the ship’s balance into two different numbers.
First, we have the Solid GM. This is the ship’s balance if you pretend every single drop of liquid on board is frozen solid into a block of ice. It assumes nothing can move. This is the starting number the loading computer gives the captain.

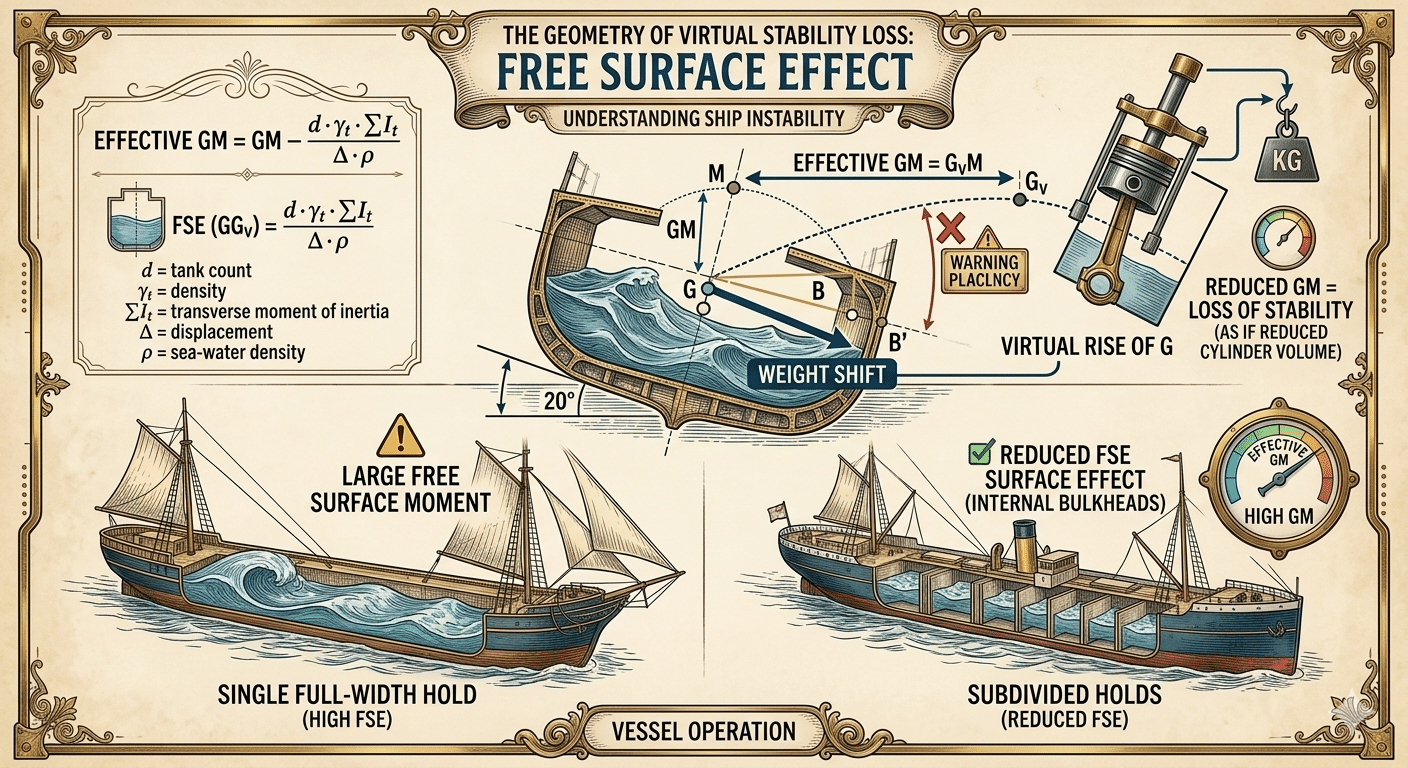

Second, we have the Effective GM. In the maritime world, this is also called the Fluid GM. This is the actual, true balance the ship experiences out on the real ocean. It is the Solid GM minus the damage caused by the sloshing liquids. Because the liquid moves to the lowest side of the ship during a roll, it drags the ship’s balance point down with it. In physics, this sliding liquid perfectly mimics the effect of a massive weight being moved straight up into the ship’s mast.
This virtual upward shift of weight is called a “Virtual Rise in G.” As we know, moving weight upward shrinks the safety gap between gravity and the pivot point. Therefore, the Free Surface Effect always violently shrinks the ship’s GM.
The Free Surface Correction (FSC)
Deck officers must know exactly how much safety is being stolen by the sloshing tanks. They call this stolen amount the Free Surface Correction (FSC).
Every single slack tank (partially filled tank) on the ship generates its own FSC penalty. The penalty is not based on how deep the liquid is. It is based almost entirely on how wide the tank is. A wide tank creates a massive penalty. A narrow tank creates a tiny penalty. The officer must calculate the penalty for every single slack tank and add them all together to find the total FSC.
Once they have the total penalty, the math is incredibly simple. They subtract the total penalty from the starting Solid GM.
If a ship has a Solid GM of 1.5 meters, but the sloshing tanks create an FSC penalty of 0.5 meters, the Effective GM drops to only 1.0 meter. The ship is instantly much weaker and more vulnerable to the wind and waves.
Why the Effective GM is the Only Number that Matters
The Effective GM is the ultimate truth of the ship’s survival. It is the number that dictates exactly how the vessel will handle in a hurricane.
If the FSE affects the effective GM too severely, the number can drop dangerously close to zero. The ship will become incredibly “tender.” It will roll lazily, lean heavily, and take a terrifying amount of time to stand back up. If the Effective GM drops below zero, the ship becomes completely unstable and will immediately capsize.
Because of this severe danger, global maritime law is extremely strict. Organizations like the International Maritime Organization (IMO) legally mandate that all stability limits must be met using the Effective GM, never the Solid GM. Furthermore, marine engineers from the Society of Naval Architects and Marine Engineers (SNAME) design modern loading computers that automatically subtract the FSC penalty the moment a tank drops below 98% full. Inspectors from the United States Coast Guard (USCG) will rigorously review these calculations before a ship leaves the dock to ensure the true Effective GM is large enough to keep the crew safe.
Pertinent Q&A
1. Does a completely full tank have a Free Surface Correction (FSC) penalty? No, it does not. If a tank is 100% full (often called a “pressed” tank), the liquid has absolutely no room to move. Because the liquid cannot slosh, the Free Surface Effect is zero. The FSC penalty is zero.
2. Does a completely empty tank have an FSC penalty? No. Just like a full tank, an empty tank has zero moving liquid. Therefore, it creates zero free surface effect and has zero penalty. This is why captains try to keep tanks either completely full or completely empty.
3. Does the density of the sloshing liquid change the Effective GM? Yes, it does. Heavy, dense liquids like drilling mud or heavy fuel oil pack a much harder punch when they hit the side of the tank. They create a much larger FSC penalty than a light liquid like aviation fuel or fresh water.
4. How does the Free Surface Effect change the GZ Curve (the safety graph)? Because the Effective GM is smaller than the Solid GM, the entire starting slope of the GZ curve becomes much flatter. The ship loses its initial fighting power. Furthermore, the highest peak of the curve drops lower, meaning the ship’s maximum survival strength is severely weakened.
