The Cubed Curse: Why a Wide Tank is More Dangerous Than a Narrow Tank Regarding FSE

If you spill a glass of water on the floor, it makes a mess. If you spill a massive swimming pool inside a moving cargo ship, it can sink the vessel. But when naval architects look at partially filled (slack) tanks, they do not fear the depth of the water. They fear the width.

In the maritime industry, it is a proven mathematical fact that a wide tank is more dangerous than a narrow tank regarding the Free Surface Effect (FSE). The reason lies in a brutal combination of physical momentum and geometric mathematics. If a captain does not respect the width of their tanks, a single rogue wave can send the ship to the bottom of the ocean. Let us dive into the physics of the slosh, the terrifying “cubed” math formula, and the simple steel walls used to defeat it.

The Physics of the Slosh: Distance and Leverage

To understand why width is the enemy, we have to picture the liquid moving inside the ship. When a ship rolls to the side, gravity pulls the liquid inside a slack tank down toward the lowest corner.

If the tank is very narrow, the liquid hits the wall almost immediately. It cannot travel very far. Because it only moves a short distance, the ship’s Center of Gravity (the balance point) only shifts a tiny bit. The ship easily survives.

However, if the tank stretches all the way across the entire width of the ship, the situation becomes deadly. When the ship rolls, the liquid has a massive, open runway to travel across. Thousands of tons of heavy water or fuel violently rush from the extreme left side of the ship all the way to the extreme right side. This creates massive physical momentum. More importantly, it creates massive leverage. Because the weight slides so far away from the center of the ship, it drags the ship’s Center of Gravity violently outward, forcing the ship to lean dangerously deep into the water.

The Mathematics: The Terrifying Cubed Factor

Deck officers do not just guess how dangerous a tank is; they calculate it. When we look at the mathematical formula for the Free Surface Correction (the penalty to the ship’s stability), the true danger of width is revealed.

The core geometry of the sloshing liquid is calculated using this formula:

In this equation, $L$ is the Length of the tank (front to back), and $B$ is the Breadth, or width, of the tank (side to side).

Notice the tiny number $3$ next to the Breadth. The width is cubed ($B\times B\times B$). This is why a wide tank is more dangerous than a narrow tank.

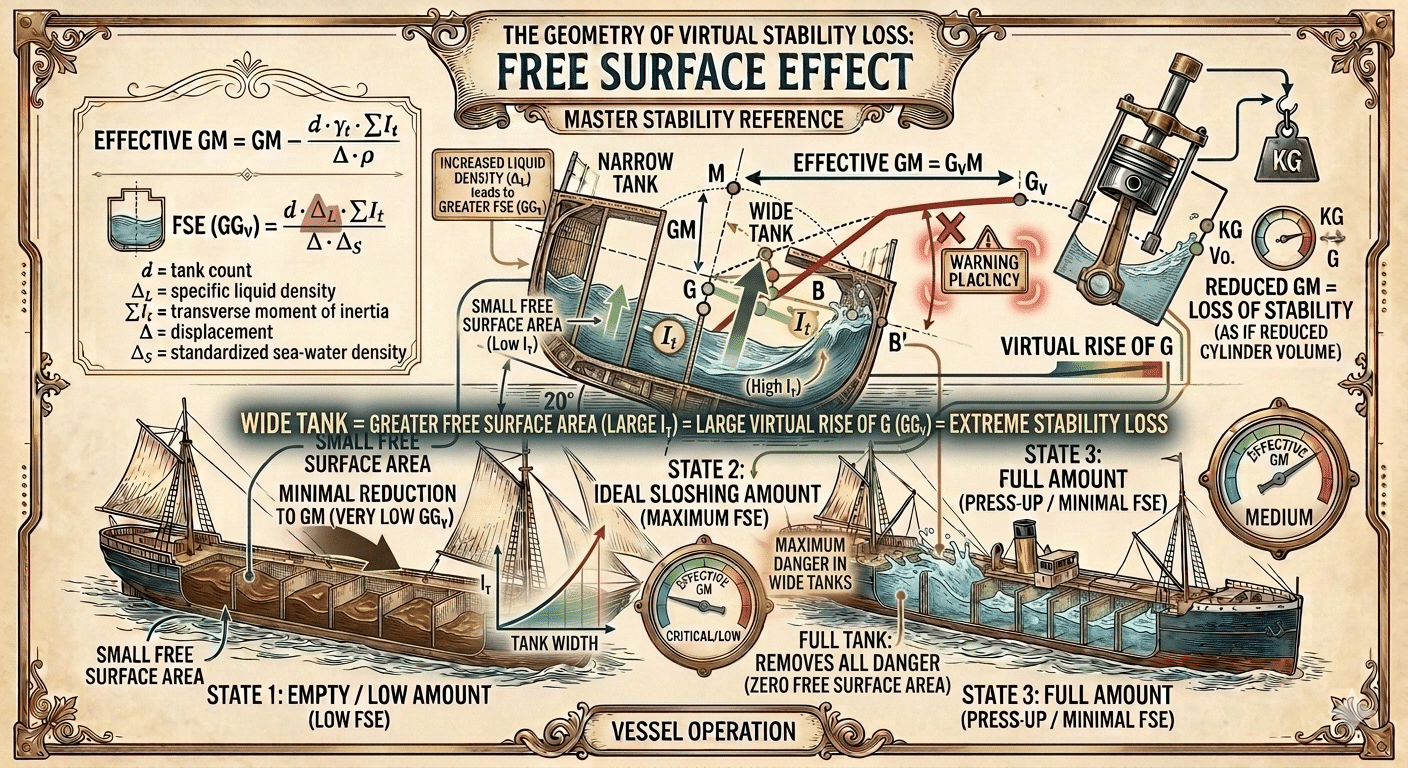

Imagine a tank that is 10 meters wide. 103 is $1,000$. Now, imagine a tank that is 20 meters wide. It is only twice as wide. But mathematically, 203 is $8,000$! By simply doubling the width of the tank, the stability penalty does not double; it explodes, becoming eight times more destructive. This cubed factor means that even a slight increase in a tank’s width causes a massive, exponential loss of the ship’s twisting power (the GM).

The Engineering Solution: Divide and Conquer

Because naval architects from organizations like the Society of Naval Architects and Marine Engineers (SNAME) understand this terrifying math, they design ships to aggressively fight back against width.

They cannot always make the ship itself narrower, so they make the tanks narrower. They do this by welding solid steel walls, called longitudinal bulkheads, straight down the middle of massive cargo and fuel tanks.

Let us look at the math again. If you take a 20-meter wide tank (penalty of 8,000) and put a wall exactly in the middle, you now have two 10-meter wide tanks. Each 10-meter tank has a penalty of 1,000. Because you have two of them, the total penalty is $1,000+1,000=2,000$.

By simply installing one steel wall down the middle, the penalty instantly drops from 8,000 down to 2,000. The ship instantly regains 75% of its lost stability. Global safety authorities, including the International Maritime Organization (IMO) and the United States Coast Guard (USCG), strictly mandate these internal dividing walls to ensure wide ships can safely cross rough oceans without capsizing.

Pertinent Q&A

1. Does the length of the tank (front to back) have a cubed effect? No, it does not. If you look at the formula (i=12L×B3​), the Length ($L$) is not cubed. If you double the length of a tank, the FSE penalty simply doubles. It is a direct, linear relationship. The width is the only dimension that causes an exponential explosion in danger.

2. Why don’t they just build hundreds of tiny walls in every tank? While that would completely erase the FSE, it creates massive engineering problems. Every steel wall adds heavy, permanent weight to the ship, meaning the ship can carry less paying cargo. Also, cleaning, inspecting, and pumping thick oil out of hundreds of tiny, cramped compartments is incredibly difficult and expensive for the crew.

3. Do baffle plates (walls with holes in them) stop the Free Surface Effect? No, they do not. Some tanks have “swash bulkheads,” which are walls with large holes designed to slow down the speed of the crashing water. While this stops the water from physically denting the steel hull, the liquid still eventually levels out across the entire width of the tank. Therefore, walls with holes do not reduce the mathematical FSE penalty. Only solid, watertight walls reduce the penalty.

4. How does a ship’s anti-roll system handle wide tanks? Ironically, some ships use wide tanks on purpose to stop the ship from rolling! These are called “Anti-Roll Flume Tanks.” They are carefully designed wide tanks partially filled with water. The water sloshing is mathematically timed to crash against the wall in the exact opposite direction of the ocean waves, actively fighting the ocean and keeping the ship flat.
