The Depth Deception: Does the Amount of Liquid Change the Free Surface Effect?
It sounds completely illogical, but maritime physics can be strange. If you have a massive, rectangular fuel tank on a ship, you might assume that a tank filled to 90% is much more dangerous than a tank filled to only 10%. After all, there is much more heavy liquid moving around, right?

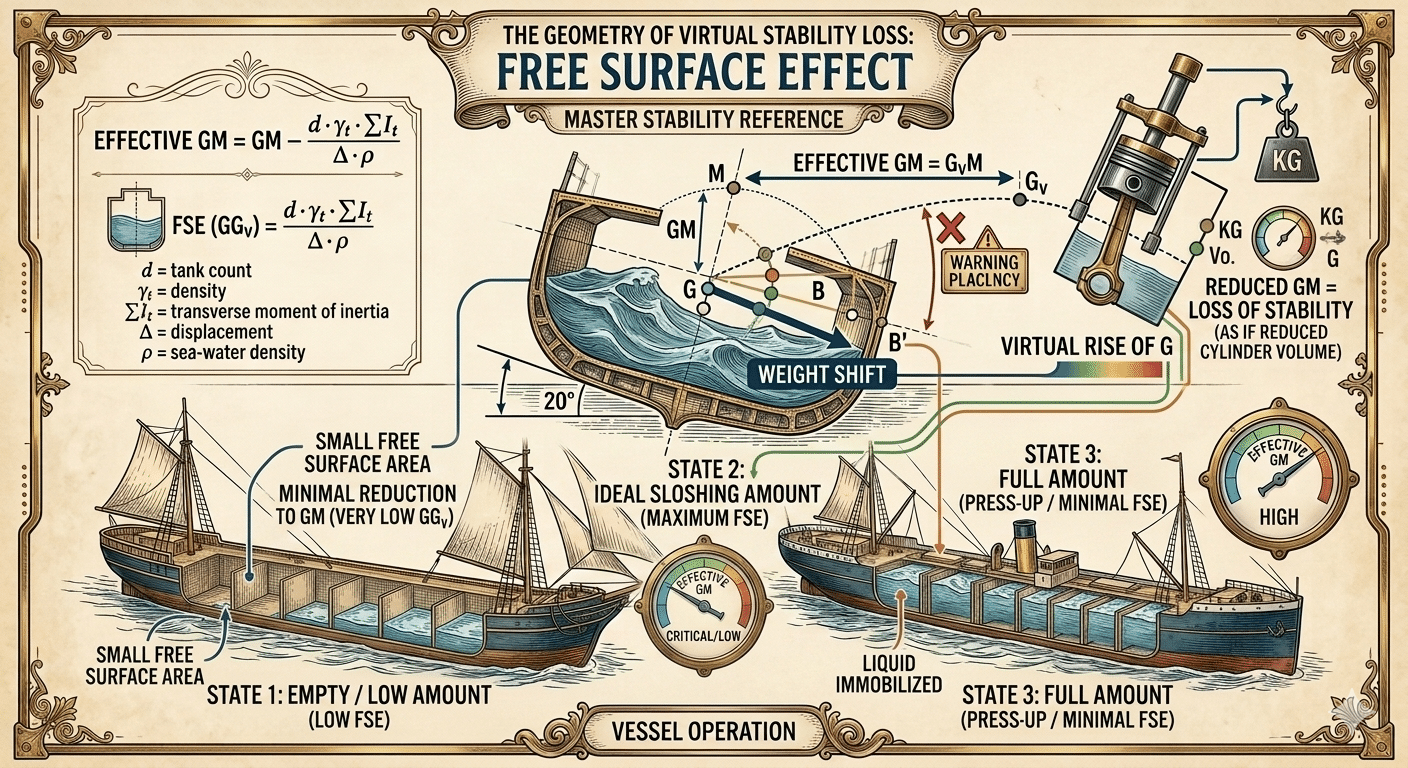

Surprisingly, this is completely wrong. Assuming the tank has straight, vertical walls, the amount of liquid in a tank does not change the FSE (Free Surface Effect) penalty. A tank that is 10% full destroys the exact same amount of the ship’s stability as a tank that is 90% full. Let us explore the bizarre physics behind this “depth deception,” why the math completely ignores the volume of the water, and the one exception where depth actually does matter.
The Myth of the Deep Pool
When a ship rolls, the liquid inside a slack tank sloshes to the lowest side. This sliding weight causes a virtual upward shift in the ship’s Center of Gravity, stealing its twisting power (the GM).
Because a 90% full tank holds thousands of tons more liquid than a 10% full tank, human intuition tells us the heavier tank must cause more damage. But physics does not care about the total weight of the liquid. Physics only cares about the surface area of the liquid that is free to shift.
Think about a rectangular swimming pool. If the pool has one foot of water in it, the surface of the water stretches from wall to wall. If the pool has ten feet of water in it, the surface of the water still stretches the exact same distance from wall to wall. Because the surface area has not changed, the liquid’s ability to shift its geometry from side to side remains absolutely identical.
The Math: Why Depth is Missing
Deck officers calculate the exact loss of safety caused by sloshing liquids using the Free Surface Correction (FSC) formula. If we look closely at the math for a rectangular tank, the reason becomes perfectly clear.
The core of the penalty is calculated using the “Second Moment of Area” (represented by the letter ) for the surface of the liquid. The formula for a rectangular tank is:
In this formula, is the length of the tank, and is the breadth (width) of the tank. Notice what is entirely missing from this mathematical equation? The depth. The formula proves that the only dimension that truly matters is the width (). Furthermore, because the width is cubed (), even a tiny increase in width causes a massive explosion in the FSE penalty. The physical depth of the liquid is completely mathematically irrelevant to the penalty.
The Exception: When Walls are not Straight
There is one major exception to this rule. The depth of the liquid does not matter only if the tank is a perfect rectangle with straight vertical walls.
However, ships are not shaped like perfect boxes. The bottom of the hull is curved. Therefore, the tanks built against the bottom of the hull (double-bottom tanks) or the side of the hull (wing tanks) often have curved or angled walls.
If a tank gets wider as it goes up, then the amount of liquid in a tank changes the FSE. Why? Because if the tank is 90% full, the surface of the water sits higher up where the tank is physically wider. Since width is the ultimate enemy, the wider surface at 90% creates a much larger FSE penalty than the narrow surface at 10%. Ship loading computers must constantly recalculate the penalty for these awkwardly shaped tanks as the liquid levels change.
Pertinent Q&A
1. If a 10% full tank is just as dangerous as 90%, why do captains worry more about heavy ships? While the FSE penalty (the loss of GM) is the same, a ship that is 90% full of heavy fuel sits much deeper in the water. It has a different starting Center of Gravity. The FSE penalty is applied to the ship’s overall stability. A heavy ship might simply have less starting stability to sacrifice than a light ship.
2. At what exact percentage does the Free Surface Effect officially disappear? The FSE officially drops to zero the precise millisecond the liquid hits the roof of the tank and has absolutely no room to expand or shift. In the maritime industry, a tank is legally considered 100% “pressed” and safe from FSE only when it is filled to its absolute maximum capacity.
3. Does the width of the ship itself change the FSE? No, the width of the ship does not matter. Only the width of the specific tank matters. This is why marine engineers build longitudinal bulkheads (steel walls) down the center of massive cargo tanks. By breaking one wide tank into two narrow tanks, they instantly destroy 75% of the FSE penalty.
4. What happens if the tank is only 1% full (a tiny puddle)? If there is only a tiny puddle on the floor, the math changes. The puddle is not wide enough to stretch from wall to wall. Because the liquid does not cover the entire floor, the standard formula fails. This tiny puddle is called a “dry bottom” condition. The liquid will just slide into the corner. While it does shift the Center of Gravity slightly, it does not create the massive, full-width FSE penalty.
