The Crane Danger: The Effect of Suspended Weights on the Center of Gravity
Imagine a ship using a massive, towering crane to lift a heavy steel box off the dock. As soon as the box leaves the solid ground, the ship reacts. But how does the ship actually feel that weight? You might think the weight is resting down near the deck where the box is hovering. You would be wrong.
In maritime physics, a hanging weight plays a highly dangerous trick on the ship’s balance. Understanding the effect of suspended weights on the center of gravity is crucial for crane operators and captains. It is one of the most common reasons ships accidentally flip over while loading cargo in perfectly calm water. Let us explore this hidden physics trick, why the weight teleports to the sky, and how crews prevent disaster.
The Point of Suspension Rule

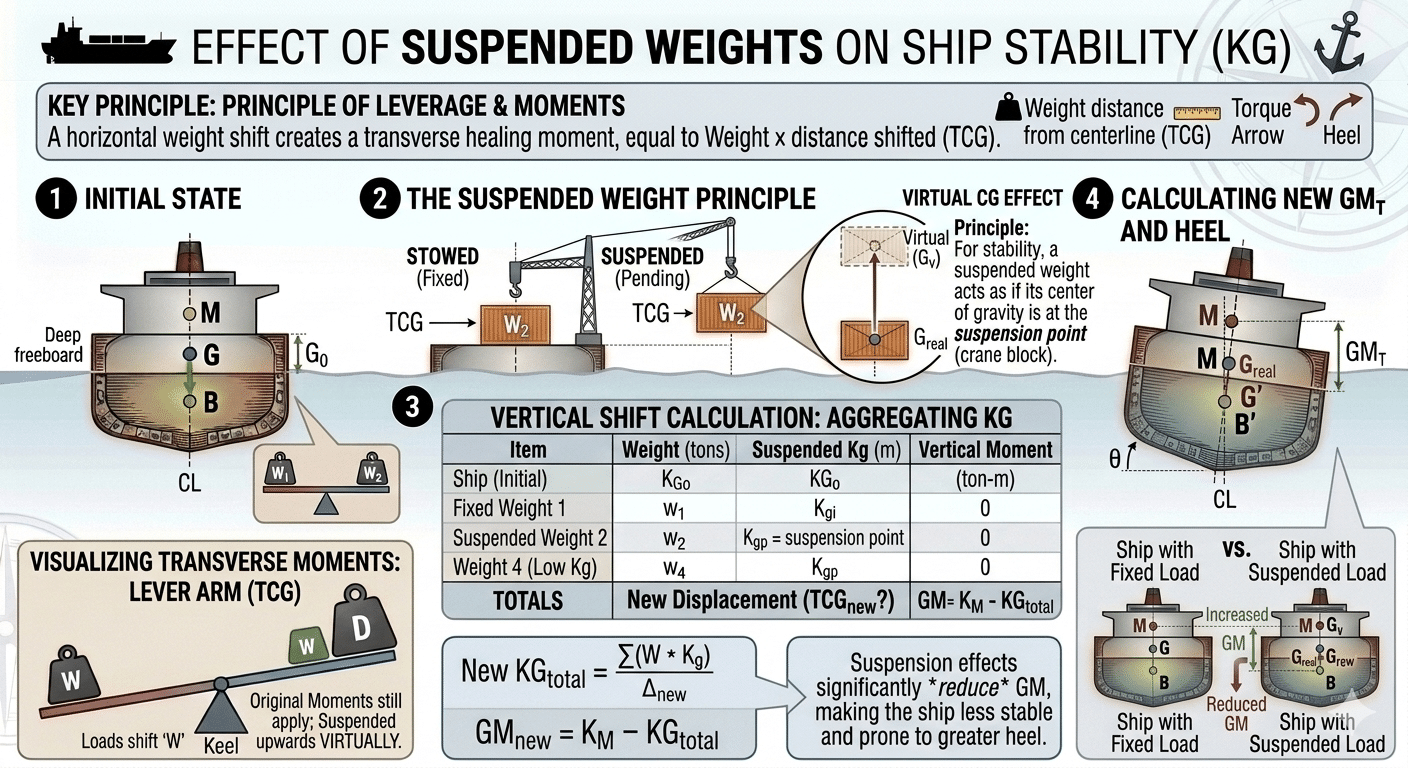

When a ship’s crane lifts a heavy box, the tension in the steel wire changes everything. The ship no longer feels the weight where the box is physically hovering in the air. Instead, the ship feels the entire weight acting at the exact point where the wire is attached. We call this the “point of suspension.”
Think about holding a heavy metal ball on a string. You feel the weight pulling heavily on your fingers, not down by your knees. For a ship, the point of suspension is the very tip of the tall crane boom. The exact millisecond the cargo lifts off the ground, its center of gravity instantly teleports from the box all the way up to the top of the crane. The ship feels as if a massive, heavy box was just bolted to the very top of its highest mast.
A Sudden Upward Shift in Weight
Why is this teleportation so dangerous? It is dangerous because the tip of the crane is incredibly high up in the air. As we know, moving weight straight upward is a major hazard for ship stability.
When the ship feels that heavy weight at the top of the crane, the ship’s total Center of Gravity (G) shoots straight upward. This rapid upward shift drastically shrinks the ship’s safety gap, known as the Metacentric Height (GM). The ship instantly loses a massive amount of its twisting power. It becomes very tender and highly unstable. If the crane lifts a weight that is too heavy, the ship’s total Center of Gravity might rise too high. The ship will lose all of its fighting power and capsize immediately.
Swinging Cargo and Tilting Hulls
The danger gets much worse when the crane starts moving. To load the cargo, the crane must swing the heavy box out over the open deck or the ocean. When the crane swings, the tip of the boom moves sideways.
Remember the golden rule of maritime physics: the Center of Gravity always follows the weight. Because the tip of the crane (the point of suspension) moved sideways, the ship’s Center of Gravity also moves sideways. This creates a severe horizontal shift. The ship will immediately start to tilt, or “list,” heavily toward the swinging cargo. Crane operators must use extreme caution so they do not flip the ship. Global safety authorities, such as the International Maritime Organization (IMO) and the United States Coast Guard (USCG), require strict mathematical checks before a ship is ever allowed to use its heavy-lift cranes.
Pertinent Q&A
1. Does the length of the crane wire change the ship’s balance? No, it does not. This is a very common misconception. Whether the box is hanging one foot below the crane tip or fifty feet below it, the physics remain identical. The ship only feels the weight at the exact point of suspension (the top of the crane).
2. What happens the exact moment the cargo touches the deck? The severe danger instantly disappears. The moment the weight rests on the solid deck, the tension on the crane wire drops to zero. The center of gravity of that cargo drops instantly from the tip of the crane down to the solid deck. The ship immediately regains its safe balance.
3. Can a ship flip over from a crane even if the water is completely calm? Yes, absolutely. If a ship is already slightly top-heavy, lifting a massive weight can cause a fatal upward shift in the Center of Gravity. The ship will capsize purely from its own internal physics, without a single wave ever pushing it.
4. How do ship designers make heavy-lift cargo ships safe? Ships designed specifically to lift massive weights are built to be extremely wide. Respected engineering groups like the Society of Naval Architects and Marine Engineers (SNAME) ensure these heavy-lift ships have a massive starting GM. This extra width allows them to safely absorb the dangerous upward shifts caused by their own cranes.
