The Master Equation: How to Calculate the New KG After Loading Multiple Weights
Loading a massive cargo ship is exactly like packing a giant, floating moving van. Every single steel box you place on the deck instantly changes the balance of the entire vessel. You cannot just guess if the ship will stay upright. You must prove it mathematically. On a ship, the center of all this weight is called the Center of Gravity, or “KG”. This stands for the distance from the Keel (the bottom) to the Center of Gravity.
When a ship sits empty at the dock, it has a starting KG. But when cranes start dropping hundreds of heavy containers onto different decks, that KG moves around wildly. To ensure the ship will not capsize in a storm, the crew must find the exact new location of this pivot point. Let us explore the simple, foolproof math used to calculate the new KG after loading multiple weights, keeping the crew safe on the open sea.
Step 1: Understanding the Power of Moments
Before you can find the new KG, you have to understand a physics rule called the “Principle of Moments.” It sounds complicated, but it is incredibly easy.
Imagine you are holding a heavy bowling ball. If you hold it close to your chest, it feels light. If you hold it straight out at arm’s length, it feels incredibly heavy and pulls you forward. The ball did not gain weight. It simply gained leverage because you moved it further away from your body. In physics, this combination of weight and distance is called a “Moment.”
On a ship, we measure the vertical distance from the keel (the bottom of the hull) up to the cargo. To find the twisting power (the moment) of a piece of cargo, you simply multiply its weight by its height above the keel.
Moment = Weight x Distance (Height)
If you load a 10-ton box on a deck that is 5 meters high, the moment is 50 ton-meters. To calculate the new KG after loading multiple weights, you simply have to add up all the weights and add up all their moments.

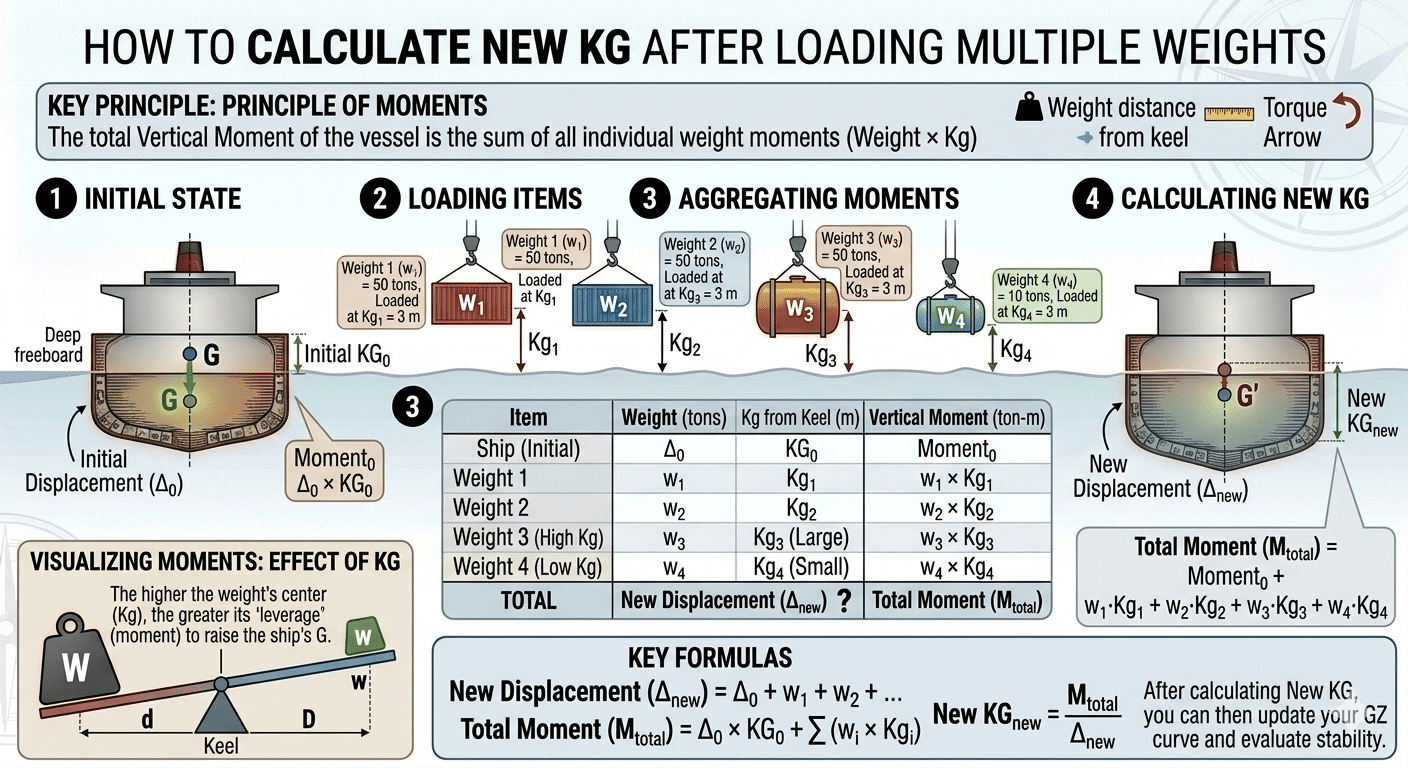

Step 2: The Step-by-Step Calculation Method
Deck officers use a very simple chart to keep track of this math. Here is exactly how they do it before the ship leaves the port.
-
Find the Starting Point: First, look at the ship’s stability book. Write down the empty ship’s starting weight (called Displacement) and its starting KG. Multiply those two numbers together to find the ship’s starting moment.
-
Calculate the New Cargo Moments: Next, look at the new cargo. For every single new box you load, multiply its weight by the exact height of the deck where it is placed. Write down the moment for each individual box.
-
Add Up the Total Weight: Add the ship’s starting weight to the weight of all the new cargo boxes. This gives you the ship’s final Total Weight.
-
Add Up the Total Moments: Add the ship’s starting moment to the moments of all the new cargo boxes. This gives you the ship’s final Total Moments.
-
Divide for the Answer: Finally, use the master formula. Simply divide the Total Moments by the Total Weight.
The answer is your exact new KG. It tells you exactly how high the Center of Gravity sits above the keel after all the loading is finished.
Step 3: Real-World Safety Checks
Because this math is a matter of life and death, the shipping industry leaves absolutely no room for errors. Today, advanced loading computers do this math automatically. Every time a crane loads a container, the computer updates the total moments and spits out the new KG instantly.
However, technology can fail. Global safety regulators, like the International Maritime Organization (IMO), require every single deck officer to know how to do this math by hand with a simple calculator. If the ship’s power goes out, the crew must still be able to prove the vessel is safe to sail.
Respected organizations like the Society of Naval Architects and Marine Engineers (SNAME) design the cargo holds so that weight can be distributed safely. National groups, including the United States Coast Guard (USCG), frequently inspect ships at the dock. They will ask to see the Chief Officer’s loading sheets to verify that the final calculated KG meets all legal safety limits before the ship is allowed to enter the ocean.
Pertinent Q&A
1. What happens to the math if I unload a weight instead of loading it? If you remove cargo from the ship, you simply subtract instead of adding. You subtract the unloaded cargo’s weight from the total weight, and you subtract its moment from the total moments. Then, you divide the same way.
2. How do I calculate the new KG if I just move a weight from the bottom deck to the top deck? Moving a weight that is already on the ship does not change the Total Weight. It only changes the Total Moments. You use a faster shortcut formula: . You then add that shift to your old KG.
3. What happens if the final new KG is a very large number? If the final KG is very large, it means the ship is extremely top-heavy. The Center of Gravity is resting dangerously high in the air. This will drastically shrink the ship’s safety margin (the GM) and make the vessel highly prone to capsizing in a storm.
4. Where do sailors find the exact height (KG) of an empty cargo deck? Sailors do not have to climb down with a tape measure. The shipyard provides a detailed set of blueprints and “Capacity Plans” for the vessel. This manual lists the exact vertical height from the keel to the center of every single deck and fuel tank on the ship.
