Wider Ships and Safe Sailing: How an Increase in Beam Affects the GZ Curve
Making a boat wider seems like the easiest way to stop it from flipping over. If you stand with your feet far apart, it is very hard for someone to push you down. Ships work exactly the same way. In ship building, the width of the steel hull is called the “beam.” When engineers design a new ship, they look at a special graph called the GZ curve. This simple line graph proves how strong the ship is against ocean waves. So, how exactly does an increase in beam affect the GZ curve? Making the hull wider changes the shape of the graph completely. It gives the ship incredible strength at first. But, it also brings a hidden danger. Let us look at what happens when we stretch a ship to make it wider.
A Steeper Start for Initial Stability
When you widen a ship, you permanently change its starting strength. On the GZ curve graph, the very first part of the line shows how the ship acts in calm water. We call this initial stability. If you increase the beam, this starting line shoots straight up very fast. It looks like a very steep hill. Why does this happen? A wide ship has a massive footprint resting on the water. When a tiny wave tries to tilt the ship, that wide, flat bottom pushes hard against the ocean. The ocean water fights back instantly.
This creates a very strong twisting force right away. Think of a wide, flat river barge. It is basically a giant floating rectangle. Because it is so wide, you can drive heavy trucks onto one side, and the barge barely leans. The massive width provides an instant wall of defense against tipping over. Because the graph line is so steep, the ship feels very “stiff.” It will snap back to a flat position very quickly. A wide ship is almost impossible to tip over when it is only leaning a few degrees. The crew feels this solid stability the moment they step onboard. The Society of Naval Architects and Marine Engineers (SNAME) studies this carefully. They know that a wider beam is the absolute best way to give a ship massive initial power. It guarantees the ship will stay flat while the crew is loading heavy cargo in the port.
A Taller Peak for Maximum Strength

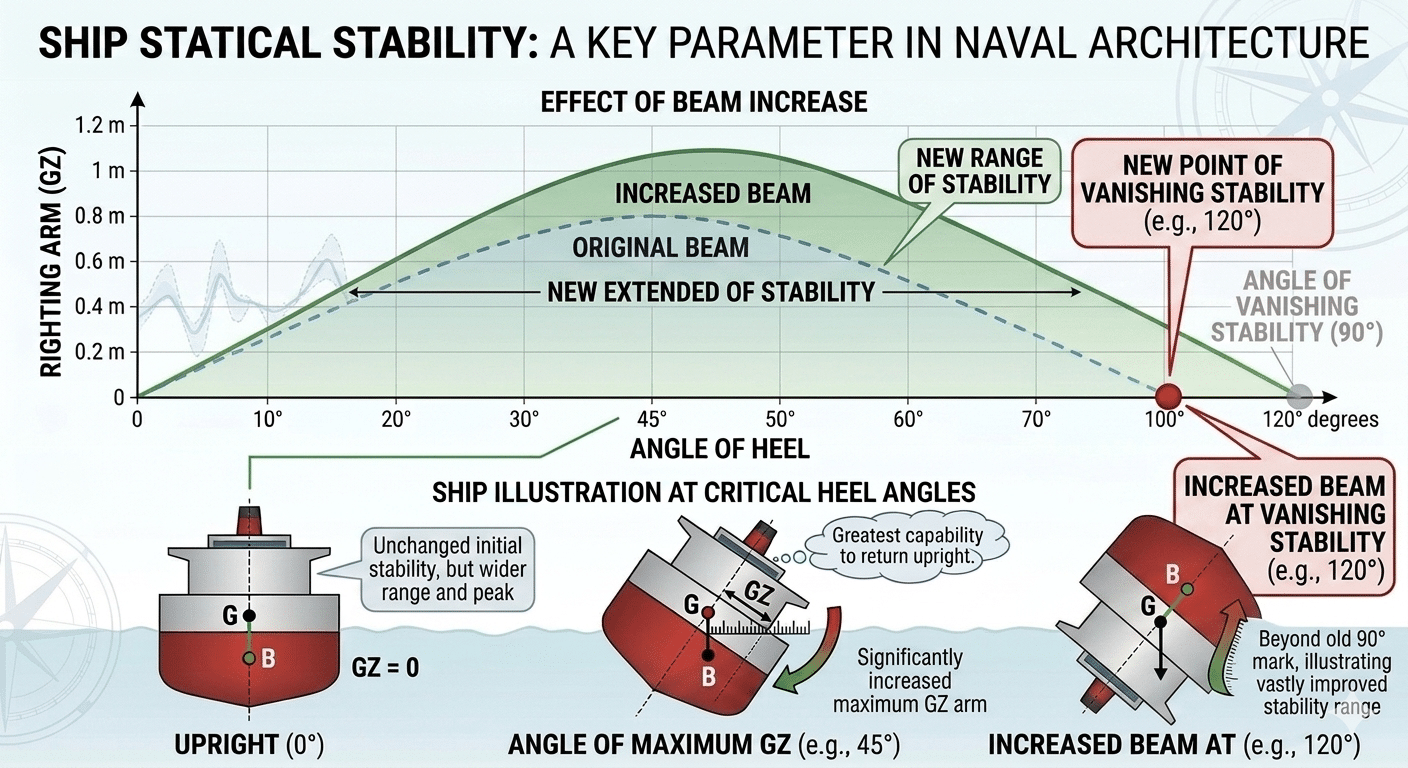

The GZ curve is shaped like a mountain. The very top of this mountain is the ship’s maximum strength. It is the absolute hardest the ship will ever fight back against a storm. When you make a ship wider, you push the top of that mountain much higher. An increase in beam affects the GZ curve by drastically raising the maximum righting lever. The invisible lever inside the ship becomes much longer. A longer lever means the ship has more raw physical power to pull itself upright.
This is excellent news for the crew. A taller peak on the graph means the ship can survive a much stronger hurricane. It can take a heavier punch from a giant wave without flipping upside down. You can imagine this like using a wrench to fix a car. A narrow ship is like using a very short wrench. You do not have much power. A wide ship is like using a very long, heavy wrench. You have massive leverage to twist things back into place. This extra leverage is what saves lives during a bad storm. Global safety rules are set by the International Maritime Organization (IMO). They demand that every single cargo ship has a high, safe peak on its graph. This strict rule protects the sailors working out on the open sea. By building the hull just a few feet wider, engineers can easily reach these required safety goals.
The Hidden Catch: An Early Deck Edge Dip
A wider ship sounds perfect so far. It has a steeper start and a taller peak. But there is a hidden catch. When a ship leans over, the flat walking deck eventually dips below the water. The moment the deck hits the water, the ship loses a lot of its fighting power. On the GZ curve, this is the exact moment the line stops climbing and starts falling down the other side of the mountain. If a ship is extremely wide, the edge of its deck is located much further out.
Because the edge is so far out, it touches the water much sooner when the ship tilts. Therefore, an increase in beam affects the GZ curve by forcing the peak to happen at a smaller angle. The ship is very strong, but it reaches its maximum limit earlier. If the ship keeps leaning past this early peak, its power fades away quickly. This means a very wide ship might actually have a smaller overall range of safety compared to a narrow ship with tall sides. Imagine standing on a very wide surfboard. If you tilt the board just a little bit, the edge goes underwater right away. Ships work the exact same way. If the deck goes underwater too early, water can wash over the hatches. It can cause serious flooding. This is why engineers cannot just make every ship as wide as possible. They have to find the perfect balance. They want the ship wide enough to be strong, but narrow enough to keep the deck dry for as long as possible.
Pertinent Q&A
1. Does increasing the beam change the Center of Gravity? No. The beam is just the physical width of the steel hull. The Center of Gravity is controlled entirely by how you load the heavy cargo. However, making the ship wider does raise the Metacenter (the invisible pivot point), which makes the ship much safer.
2. Why not make every ship as wide as possible to stop it from flipping? A very wide ship is extremely “stiff.” It will snap back so violently that it will physically hurt the crew and break the cargo. It also takes massive amounts of engine fuel to push a wide, fat ship through the ocean water. It is simply too expensive to run.
3. What does the start of the GZ curve look like for a narrow ship? A narrow ship will have a line that starts out very flat and rises slowly. Because the line is flat, the ship feels very “tender.” It will roll lazily and slowly from side to side in the water.
4. How does a wider beam change the total area under the curve? Because the peak gets much taller, the total area under the curve usually increases at first. This gives the ship a better ability to absorb sudden shocks. But if the deck dips underwater too early, that area can shrink at larger angles.
